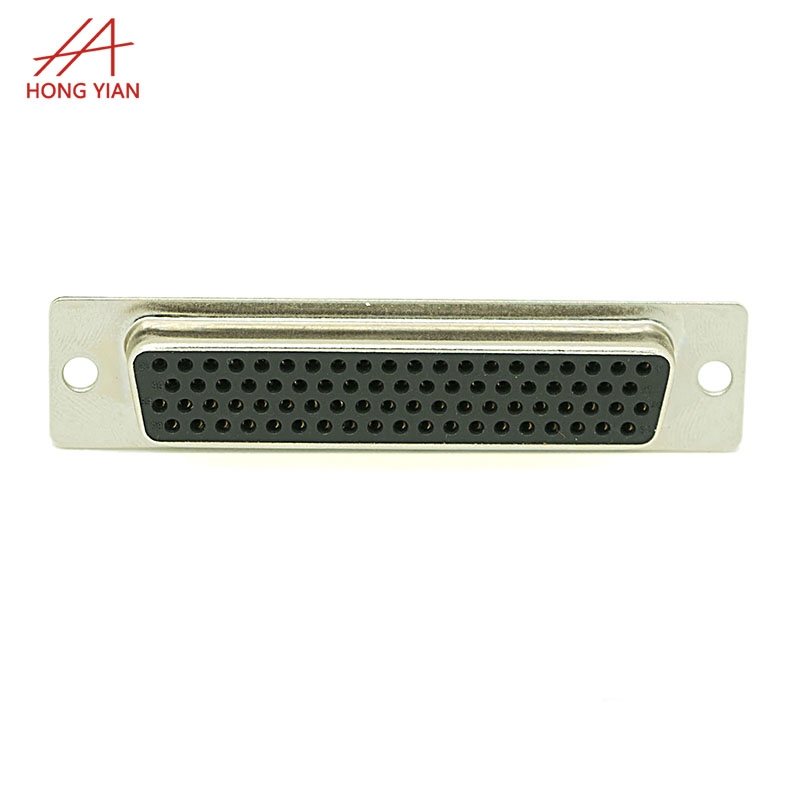

DB 78P 180 Deg Straight Dip Black Female D-sub Connector
  • DB 78P 180 Deg Straight Dip Black Female D-sub Connector

DB 78P 180 Deg Straight Dip Black Female D-sub Connector

Material: PPS, PBT and Brass
Terminal Plating: Copper alloy, Plated Au and Tin
Shell：SPCC, Plated Ni
Housing & cover：PBT+30%G.F.
Hood：Zinc alloy, Plated Ni
Package: Bag/Tub/Tape/Reel packing
OEM/ODM: Accept and made based on drawing or samples
Payment Terms: T/T, PayPal
Lead time:2weeks
Positions: 2-80pins or Customization
Samples: Provided
Confirmation: Drawing will be provided before production
Electrical characteristics：
1.Contact Current Rating: 1 Amp
2.Dielectric Withstanding Voltage:500V AC
3.Insulation Resistance: 500MΩ/Min
4.Contact Resistance: 30mΩ/Max
5.Working temperature: -25℃～+105℃
Company Advantage：
1.Factory and trade integration, more than years export experience;
2.One-stop shopping;
3.Competitive price;
4.Timely delivery;
5.Technical support;
6.Samples for free;
7.Strong R&D department. Many newest designs for your choice.
    DB 78P 180 Deg Straight Dip Black Female D-sub Connector Overview
    The DB 78-position 180-degree straight DIP connector in black female format is a high-density D-sub interface from Hong YiAn Electronics. Its vertical socket contacts and durable shell suit reliable mating in demanding wiring harnesses.

    Key Features
    Built with a PPS, PBT, and brass construction, the connector uses copper-alloy contacts plated in gold and tin, an SPCC nickel-plated shell, and a glass-filled PBT housing with a zinc-alloy nickel-plated hood. It supports 2 to 80 positions.

    Applications
    Commonly used in instrumentation, industrial controls, and data systems that need a straight 78-pin black female D-sub connector.

    Customization & Service
    Hong YiAn offers custom position counts and colors, with samples and drawing confirmation before production.
