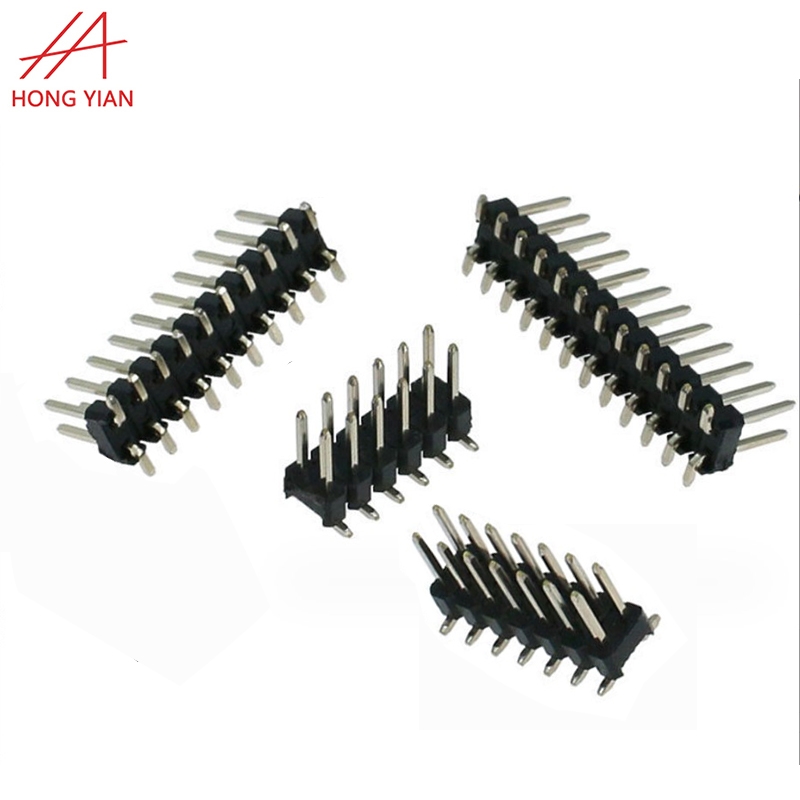

Board-to-Board DIP / SMD Pin Header Series
Hong YiAn's board-to-board DIP and SMD pin header series covers 1.27mm, 2.0mm, and 2.54mm pitches, providing a complete interconnect portfolio for PCB designers and OEM manufacturers. Available in single, dual, and triple row configurations with straight or right angle orientation, this series meets diverse stacking and mating requirements across industries.
Each pin header is precision-molded with high-temperature resistant insulator material and fitted with durable contact terminals. Both through-hole (DIP) and surface-mount (SMD) versions are offered, supporting automated pick-and-place assembly for high-volume production.
Key Features
Pitch Options: 1.27mm / 2.0mm / 2.54mm
Rows: single / dual / triple row
Mounting: DIP (through-hole) and SMD (surface mount)
Orientation: straight 180° and right angle 90°
Contact Plating: gold flash or tin
Insulator: PBT / PA6T / PA9T, UL94V-0 rated
Operating Temperature: -40°C to +105°C
Rows: single / dual / triple row
Mounting: DIP (through-hole) and SMD (surface mount)
Orientation: straight 180° and right angle 90°
Contact Plating: gold flash or tin
Insulator: PBT / PA6T / PA9T, UL94V-0 rated
Operating Temperature: -40°C to +105°C
Applications
This versatile series serves industrial automation, LED displays, automotive electronics, medical instruments, power supplies, telecom equipment, and consumer electronics. The multi-pitch coverage allows engineers to source all board-to-board connection needs from a single qualified supplier.
Customization & Service
As a professional connector manufacturer, Hong YiAn offers OEM/ODM services including custom pin count, plating thickness, insulator color, and packaging. Standard items deliver in 3-7 days; customized orders in 15-30 days. MOQ from 100 pieces, free samples available. RoHS compliant, TUV-audited factory.
