SCSI Connector Series

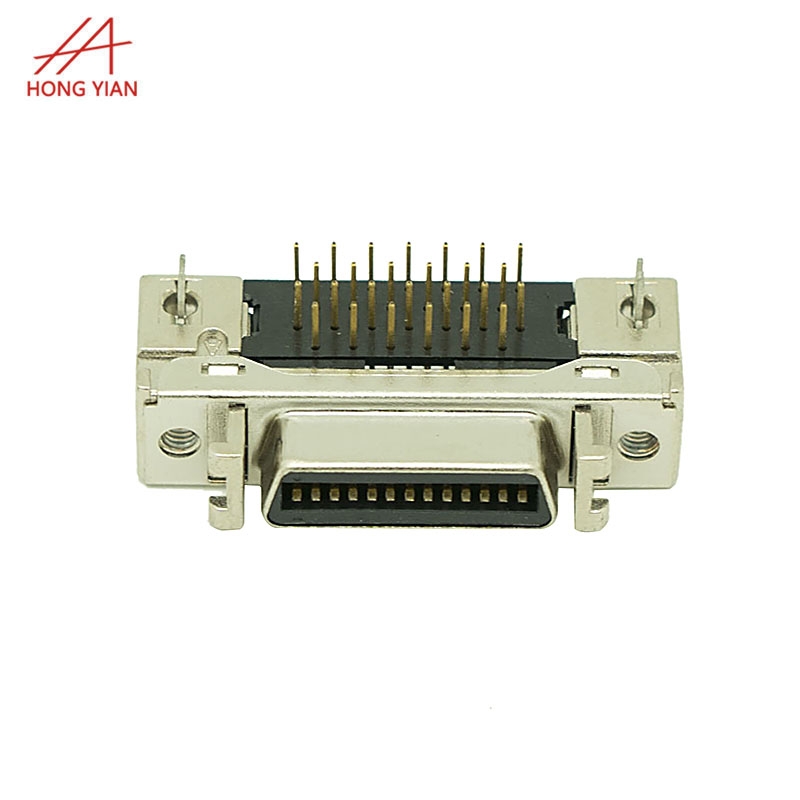

Scsi HPCN26P 90 Deg Right Angle Dip Type Femal 3M
  • Scsi HPCN26P 90 Deg Right Angle Dip Type Femal 3M

Scsi HPCN26P 90 Deg Right Angle Dip Type Femal 3M

Material: PPS, PBT and Brass
Terminal Plating: Copper alloy, Plated Au and Tin
Shell：SPCC, Plated Ni
Housing & cover：PBT+30%G.F.
Hood：Zinc alloy, Plated Ni
Package: Bag/Tub/Tape/Reel packing
OEM/ODM: Accept and made based on drawing or samples
Payment Terms: T/T, PayPal
Lead time:2weeks
Positions: 2-80pins or Customization
Samples: Provided
Confirmation: Drawing will be provided before production
Electrical characteristics：
1.Contact Current Rating: 1 Amp
2.Dielectric Withstanding Voltage:500V AC
3.Insulation Resistance: 500MΩ/Min
4.Contact Resistance: 30mΩ/Max
5.Working temperature: -25℃～+105℃
Company Advantage：
1.Factory and trade integration, more than years export experience;
2.One-stop shopping;
3.Competitive price;
4.Timely delivery;
5.Technical support;
6.Samples for free;
7.Strong R&D department. Many newest designs for your choice.

    HPCN26P 90 Deg Right Angle DIP Type Female 3M-Compatible SCSI Connector Overview
    The HPCN26P 90-degree right-angle DIP female SCSI connector is a 3M-compatible 26-position interface from Hong YiAn Electronics, designed for horizontal board mating. Its right-angle pins conserve vertical space.

    Key Features
    Constructed from PPS, PBT, and brass, the connector uses copper-alloy contacts plated in gold and tin for reliable conductivity. An SPCC nickel-plated shell, glass-filled PBT housing, and zinc-alloy nickel-plated hood provide durable shielding, with 2 to 80 positions available. The 26-position right-angle DIP layout supports compact female SCSI board interfaces compatible with 3M standards.

    Applications
    Widely used in SCSI storage, industrial controllers, telecom equipment, and data systems that depend on robust high-density interconnects.

    Customization & Service
    Hong YiAn offers custom position counts and configurations, backed by OEM/ODM support, samples, and a two-week lead time.
