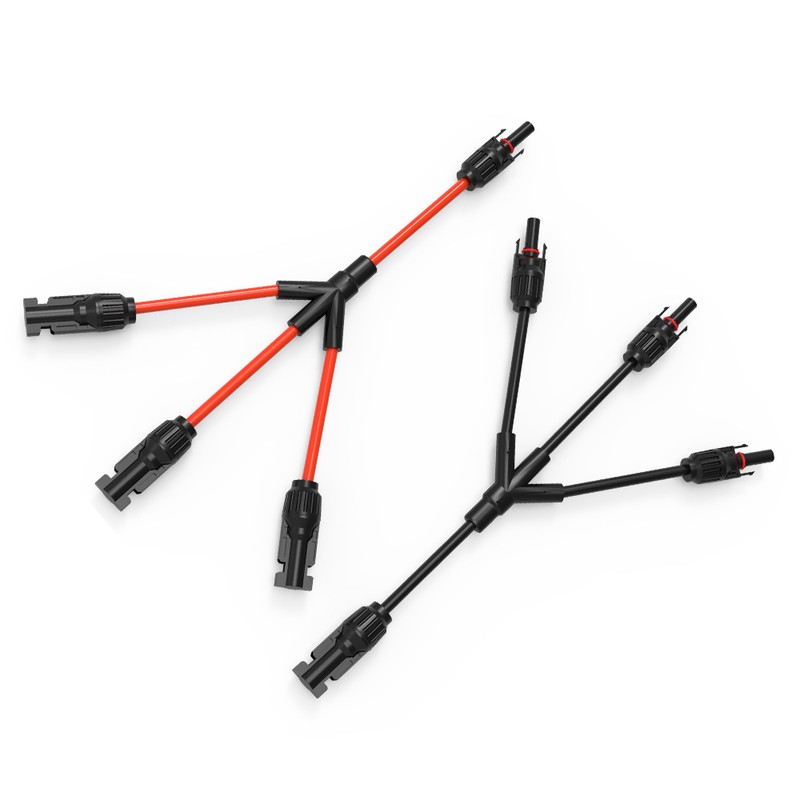

1 To 3 Solar Y Branch Connector IP67 PV Cable
  • 1 To 3 Solar Y Branch Connector IP67 PV Cable

1 To 3 Solar Y Branch Connector IP67 PV Cable

Model Number: HY-SYC-01

Connector Type: Y-branch parallel adapter, 1 to 3

Conductor Material: Tinned copper core

Insulation Material: XLPO (H1Z2Z2-K solar cable)

Rated Voltage: DC 1000V / 1500V

Rated Current: 30A

Degree of Protection: IP67

Operating Temperature: -40°C ~ +90°C

Standard Length: 100mm (custom length available)

Payment Terms: T/T, PayPal

Lead Time: About 2 weeks

    The 1 to 3 solar branch connector is a Y-type parallel adapter cable designed for photovoltaic systems. It splits one main PV line into three branch lines, allowing several solar panels to be connected in parallel quickly and safely. The cable adopts tinned copper conductors with XLPO insulation, rated for DC 1000V/1500V and 30A, and the connectors provide IP67 waterproof protection for long-term outdoor use. Custom cable length, wire gauge and connector combinations are available for OEM and ODM projects.
