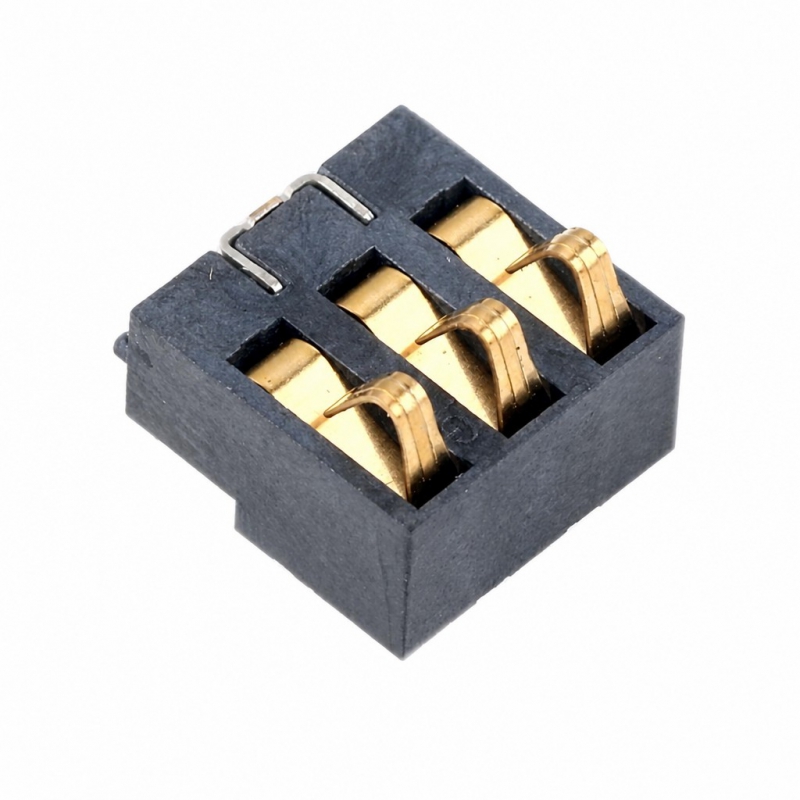

Hong YiAn Electronics presents this 3Pin H7.5 SMT battery connector, specifically designed for mobile electronics, laptop and digital camera applications. The connector features a low-profile H7.5mm design with LCP housing and phosphor bronze contacts, ensuring reliable battery connection on compact PCBs.
Key Specifications:
- Pin Count: 3 Pin
- Dimensions: 7.50L x 4.30W x 7.5H mm
- Housing Material: LCP
- Contact Material: Phosphor Bronze
- Durability: 5000 cycles Min.
- Contact Resistance: 100mOhm Max.
- Insulation Resistance: >1000MOhm / 500V DC
- IR Reflow: 250C, 5sec Max.
- Manual Soldering: 370C, 3sec Max.
- Packaging: Tape & Reel (TR)
With SMT mounting compatibility and tape-and-reel packaging, this battery connector is ideal for high-volume production. Contact Hong YiAn Electronics at sales01@hongyiancon.com for samples and bulk pricing.
