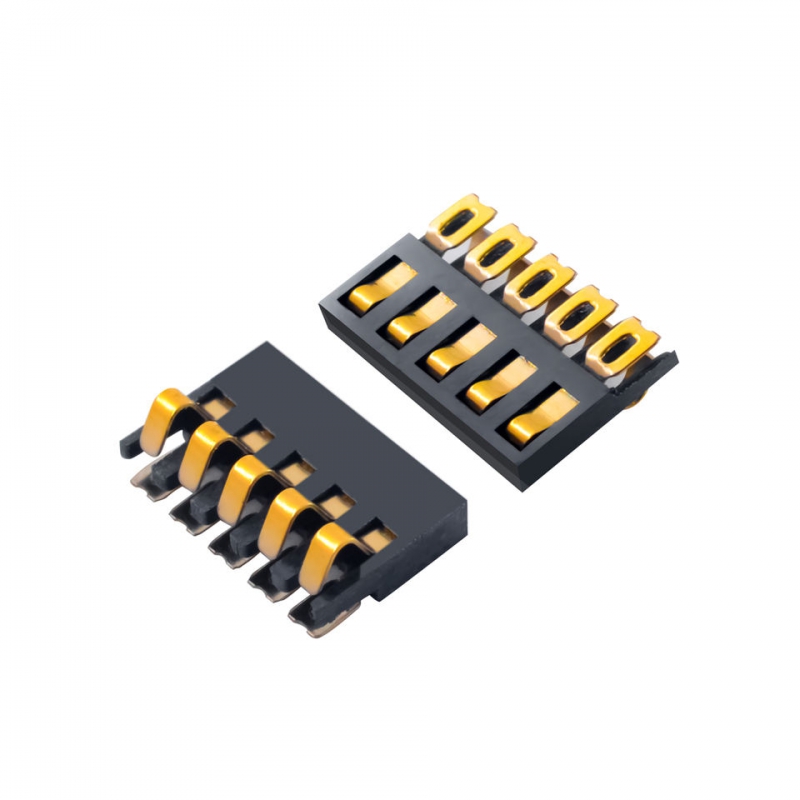

Hong YiAn Electronics presents this 5Pin H1.7 SMT battery connector, a low-profile solution designed for mobile electronics, laptop and digital camera applications. The compact H1.7mm design with LCP housing and phosphor bronze contacts provides reliable battery connections for space-constrained PCBs.
Key Specifications:
- Pin Count: 5 Pin
- Dimensions: 7.50L x 4.30W x 7.5H mm
- Housing Material: LCP
- Contact Material: Phosphor Bronze
- Durability: 5000 cycles Min.
- Contact Resistance: 100mOhm Max.
- Insulation Resistance: >1000MOhm / 500V DC
- IR Reflow: 250C, 5sec Max.
- Manual Soldering: 370C, 3sec Max.
- Packaging: Tape & Reel (TR)
This SMT battery connector is optimized for automated production lines with tape-and-reel packaging. Hong YiAn Electronics offers OEM/ODM services and free samples. Contact sales01@hongyiancon.com for more information.
