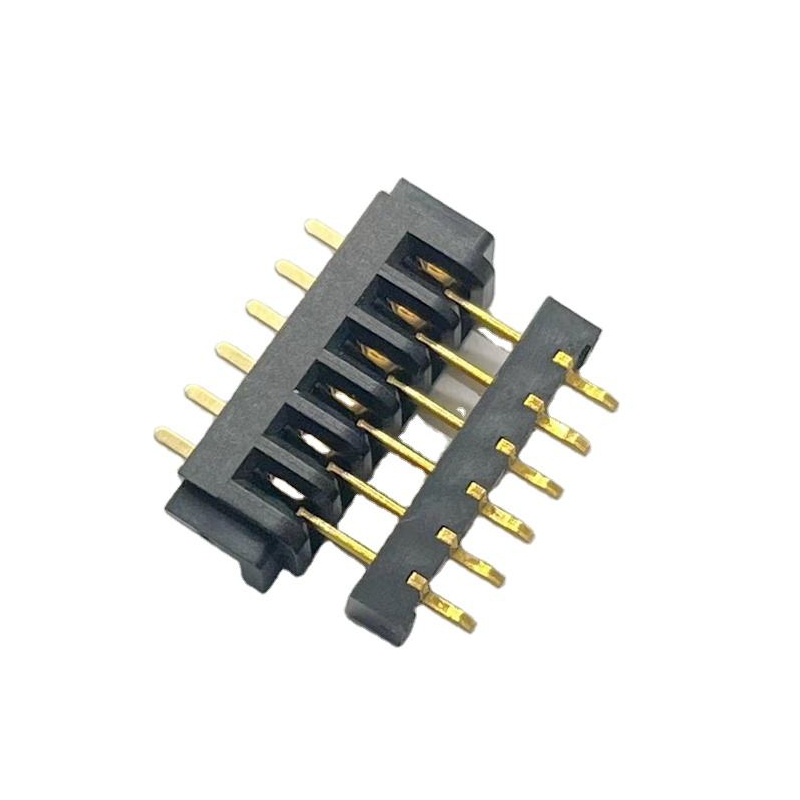

Hong YiAn Electronics offers this 2.5mm pitch male and female battery connector series, available in 2 to 14 pin configurations for laptop battery and PCB applications. The connector features a PA9T housing with brass contacts and gold flash plating, delivering high current capacity up to 30A with excellent durability.
Key Specifications:
- Pitch: 2.5mm
- Pin Count: 2P - 14P (Customizable)
- Gender: Male / Female
- Rated Current: 30A
- Contact Resistance: 30mOhm Max.
- Insulation Resistance: 1000MOhm Min.
- Dielectric Withstanding Voltage: AC 500V
- Operating Temperature: -25C to +85C
- Contact Material: Brass
- Plating: Gold Flash
- Housing Material: PA9T
- Color: Black
- Packaging: Reel
This battery connector supports customization of pin count and packaging. Hong YiAn Electronics provides free samples and OEM services. Contact sales01@hongyiancon.com for details.
